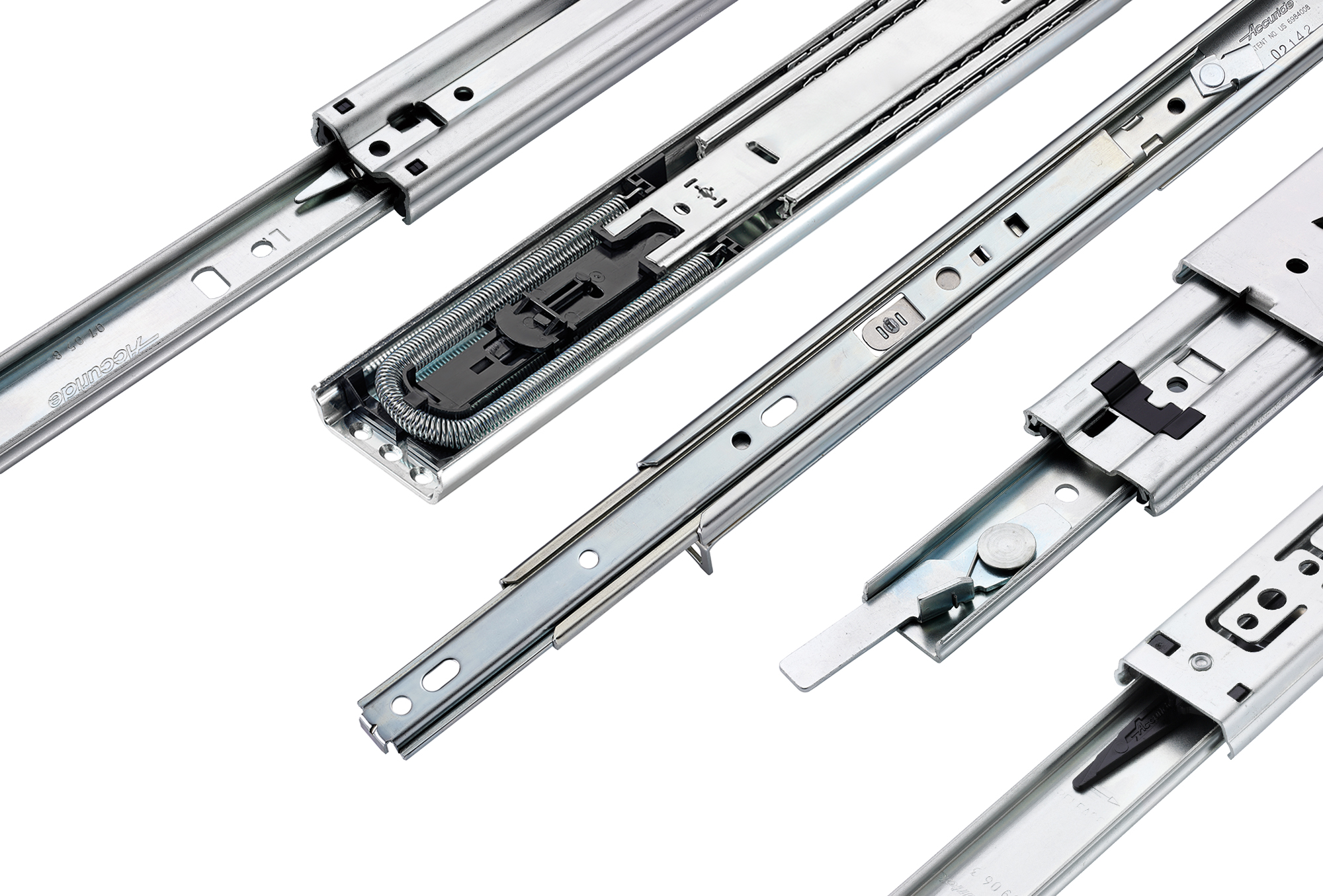

View the dimensions and additional features of our range of light-duty Accuride drawer slides.
Struggling to select the right drawer runner? Read our information page for help and guidance.
See our other range of drawer runners:
| Slide Series | Load Rating up to (kg) | Extension (%) | Slide Thickness (mm) | Slide Height (mm) | Front Disconnect | Hold-in | Hold-out | Lock-in | Lock-out | Self-close | Two-way Travel | Optional Brackets | Additional Features |
| 2421 | 16 | 75 | 8.0 | 20 | Low profile | ||||||||
| 2415 | 18.5 | 8.0 | Linear motion slide | ||||||||||
| 2720 | 20 | 75 | 9.5 | 27.1 | Suitable for flat mounting | ||||||||
| 2431 | 20 | 100 | 16 | 20 | Low profile | ||||||||
| 2730 | 30 | 100 | 19.0 | 27.1 | |||||||||
| 2731CL | 30 | 100 | 19.1 | 27 | Low profile, front lever lock release | ||||||||
| 2109 | 35 | 75 | 21.7 | Fixing hardware and height adjustable brackets included | |||||||||
| 3732 | 40 | 100 | 12.7 | 35.3 | (14mm with mounting bracket) unhanded push-latch disconnected | ||||||||
| 2601 | 45 | 100 | 12.7 | 26.3 | Low profile | ||||||||
| 2642 | 45 | 100 | 12.7 | 26.3 | Low profile, groove or side mounting option | ||||||||
| 45 | 100 | 12.7 | 45.7 | (14mm with mounting bracket) hold-out in open position, cam drawer adjust (3.2mm) | |||||||||
|
3832EC-B |
45 | 100 | 12.7 | 45.7 | Soft close, cam drawer adjust (3.2mm) | ||||||||
| 3832TR | 45 | 100 | 12.7 | 45.7 | Touch release, cam drawer adjust (3.2mm), stay-closed feature, activation force (5kg) | ||||||||
| 3832HDTR | 45 | 100 | 12.7 | 45.7 | Touch release, cam drawer adjust (3.2mm), stay-closed feature, activation force (8kg) | ||||||||
| 7400-50SC | 45 | 100+ | 13 | 43.5 | Self-close (lengths 500-700mm), bayonet mounting, vertical mounting only | ||||||||
| 3832SC | 45/50 | 100 | 12.7 | 45.7 | 14mm with mounting bracket, two self-close options, cam drawer adjust (3.2mm) | ||||||||
| 3832HDSC | 45/50 | 100 | 12.7 | 45.7 | 14mm with mounting bracket, two self-close options, cam drawer adjust (3.2mm) | ||||||||
| 0201 | 50 | 75 | 9.5 | 35.3 | Two-section slide | ||||||||
| 2026 | 50 | 75 | 9.5 | 35.3 | Hold-out on both sides | ||||||||
| 3832 | 50 | 100 | 12.7 | 45.7 | (14mm with mounting bracket) cam drawer adjust (3.2mm) | ||||||||
| 5321 | 50 | 100+ | 19.1 | 53.1 | Aluminum, stainless steel retainer and ball bearings | ||||||||
| 2907 | 55 | 100+ | 9.6 | 41.1 | |||||||||
| 2132 | 35/50 | 75 | 12.7 | 35.3 | (14mm with mounting bracket) cam drawer adjust (3.2mm) |
