View the dimensions and additional features of our range of heavy duty Accuride drawer slides.
Struggling to select the right drawer slide? Read our information page for help and guidance.
See our other range of drawer runners:
The table below shows our extensive range of Accuride heavy duty drawer runners. Click on the slide series to view the full product details.
| Slide Series | Load Rating up to (kg) | Extension (%) | Slide Thickness (mm) | Slide Height (mm) | Front Disconnect | Hold-in | Hold-out | Lock-in | Lock-out | Self-close | Two-way Travel | Optional Brackets | Additional Features |
| 5321EC | 100 | 100 | 19.1 | 53.1 | Soft-close on last 45mm of closing, suitable for drawers up to 1000m wide | ||||||||
| 6026 | 100 | 75 | 12.5 | 71.5 | Suitable for horizontal mounting | ||||||||
| 3607 | 120 | 100 | 19.1 | 53.1 | Fixing hardware included | ||||||||
| 5321SC | 120 | 100+ | 19.1 | 53.1 | Self-close | ||||||||

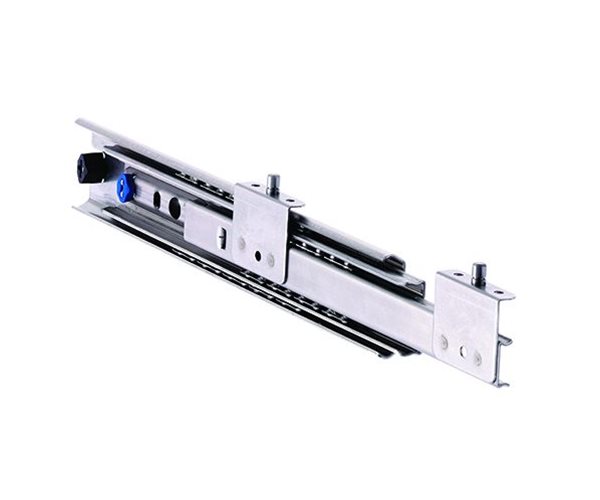

| DS5322 | 120 | 100+ | 20.7 | 53.1 | Easy mount brackets, high-grade stainless steel, ideal for environments subject to corrosion | ||||||||
| 5321 |
140/160 140/180 |
100+ | 19.1 | 53.1 | Available in mild steel and stainless steel, accessory kits available | ||||||||
| 0522 | 140/180 | 100+ | 95.5 | 95.5 | Shock blocks, protective shroud, mounting plates on inner and outer members | ||||||||
| 9301-U-E | 272 | 100 | 19.1 | 76.2 | Available in lengths up to 1.5 meters | ||||||||
| 9308-E4 | 272 | 100 | 19.1 | 76.2 | Front lever lock release |
